What benefits can we bring to you
(1) For consumers: Our spider cranes are cost-effective and built for long service life—with stable outriggers, a high-strength boom, and a precision control system, they excel in harsh and complex working conditions (such as construction sites, indoor venues, narrow spaces, and high-rise maintenance) without frequent maintenance. We offer models with load capacities ranging from 0.5 ton to 12 tons, perfectly meeting your diverse lifting needs (e.g., hauling steel structures, building materials, industrial equipment, or glass panels). We also support full customization: Whether you need a specialized boom length (extended/shortened), additional wireless remote control, anti-slip outrigger pads, or a compact design for ultra-narrow terrain, we can tailor the crane to your exact requirements.
(2) For suppliers: We guarantee a sufficient profit margin to help you expand your market competitiveness. Meanwhile, we provide 1 year of after-sales service for all spider cranes—covering parts replacement, control system troubleshooting, and on-site maintenance guidance (if needed). Before delivery, every crane undergoes strict factory testing (including load-bearing capacity tests, boom flexibility checks, control system accuracy verification, and outrigger stability tests) to ensure 100% quality compliance. Additionally, we offer free publicity support in your local market (e.g., localized product brochures, online platform promotions) and customize crane colors or print your brand trademarks on the body to strengthen your brand recognition.
Special reminder
Different customers have unique demands for spider cranes—such as custom colors, specialized configurations (e.g., hydraulic telescopic boom, LED work lights, emergency stop systems), load capacity adjustments, or appearance modifications (e.g., compact boom design, additional safety guards, customized body markings). We will provide a detailed quotation based on your specific requirements, so the final price may vary. Thank you for your understanding.
The latest configuration notice
Our tracked transport vehicles now support two key upgrades to enhance work efficiency and comfort:
Optional enclosed cab with air conditioning—effectively shielding drivers from dust, rain, high temperatures, or cold weather, ensuring a comfortable operating environment even during long-hour shifts.
Equipped with high-power branded engines (e.g., renowned diesel/petrol engine brands with reliable performance)—delivering strong torque and stable power output, which guarantees smooth transportation even when hauling full loads on slopes or uneven terrain.
These upgrades ensure an optimal work experience for both drivers and operators, while maintaining the vehicle’s durability and load-bearing capacity.
- Equipped with an efficient and low consumption engine that meets the European Stage V emission standards
- Authoritative certification: Our products have passed international authoritative certifications such as CE and ISO9001. All designs and production comply with international safety and quality standards, and are globally recognized
- Key structural components are made of high-strength steel and wear-resistant materials, which undergo precise mechanical calculations and testing to ensure that the equipment remains sturdy and stable under heavy load conditions, resistant to deformation and wear, with excellent materials and durability
- Exquisite craftsmanship, multiple quality inspections, from flaw detection, cutting, welding, machining, assembly, and testing, each process passes through refined quality inspection procedures
- Comprehensive after-sales support provides a 1-year warranty for core components
- The machine has high-quality load-bearing performance and is not easily deformed during use
| Parameter Name | Parameter Value |
| Sweep | 4.5 meters, 5 sections, full extension 18 meters |
| Operating Radius | 16.5 meters |
| Winch | 8 tons |
| Turntable | 900mm inner toothed turntable |
| Wire Rope | 11mm, 80 meters |
| Engine | Diesel, Yunnei 490 supercharged (58kW) |
| Motor | 15kW, Three-phase AC asynchronous motor, 380v |
| Outrigger | 4 double legs (manually rotated out, hydraulically telescopic) |
| Track | Length 2.6m, Width 350 mm |
| OS (Operating System) | Manual plus remote control (remote control 6 ways, walking + upper-mounted outrigger operating lever) |
| Operating Valve | Equipped with 6 proportional electric valves, 4-way switch valve for outriggers |
| Amplitude of Variation | Double variable amplitude cylinder |
| Size | Length 5m, Width 1.6m, Height 2.2m |
| Leg Span | Length 5.6m, Width 5m |
| Self-weight | 7.7 tons |
| Parameter Name | Parameter Value |
| Sweep | 4 meters, 5 sections, full arm 16.5 meters |
| Operating Radius | 15 meters |
| Winch | 5 ton |
| Turntable | 850mm inner tooth turntable |
| Wire Rope | 10mm, 60 meters |
| Engine | Diesel, Yunnei 490 (37kW) |
| Motor | 11kW, Three-phase AC asynchronous motor, 380v |
| Outrigger | 4 double legs (hand out, hydraulically telescopic) |
| Track | Length 2.2m, Width 300 mm |
| OS (Operating System) | Manual plus remote control (remote control 6 ways, walking + upper-mounted leg operating lever) |
| Operating Valve | Equipped with 6 proportional electric valves; 4-way switch valve for outriggers |
| Amplitude of Variation | Double variable amplitude cylinder |
| Size | Length 4.5m, Width 1.4m, Height 2.1m |
| Leg Span | Length 5.6m, Width 5m |
| Self-weight | 6.3 ton |
| Parameter Name | Parameter Value |
| Sweep | 2.5 meters, 5 sections, full arm 10.5 meters |
| Operating Radius | 9.5 meters |
| Winch | 3 ton |
| Turntable | 14-inch reinforced integrated turntable |
| Wire Rope | 8mm, 40 meters |
| Engine | Diesel, Yuchai ev80 (12kW) |
| Motor | 5.5KW, Three-phase AC asynchronous motor, 380v |
| Outrigger | 4 folding legs (manual rotation, manual expansion, hydraulic take-off and landing) |
| Track | Long 1.6m, Width 23 cm |
| OS (Operating System) | Manual plus remote control (remote control 6 way, walk + install leg operating lever) |
| Operating Valve | Install 6 proportional valves; leg 4 way switch valve |
| Climbing Ability | 20 degrees |
| Size | Long 3.4 m, Width 0.95 m, High 1.7 m |
| Leg Span | Long 4.2 m, Width 3.2 m |
| Self-weight | 2.7 ton |
| Parameter Name | Parameter Value |
| Sweep | 2.5 meters, 5 sections, full arm 10.5 meters |
| Operating Radius | 9.5 meters |
| Winch | 3 ton |
| Turntable | 14-inch reinforced integrated turntable |
| Wire Rope | 8mm, 40 meters |
| Engine | Diesel, Yuchai ev80 (12kW) |
| Motor | 5.5KW, Three-phase AC asynchronous motor, 380v |
| Outrigger | 4 folding legs (manual rotation, manual expansion, hydraulic take-off and landing) |
| Track | Long 1.6m, Width 23 cm |
| OS (Operating System) | Manual plus remote control (remote control 6 way, walk + install leg operating lever) |
| Operating Valve | Install 6 proportional valves; leg 4 way switch valve |
| Climbing Ability | 20 degrees |
| Size | Long 3.4 m, Width 0.95 m, High 1.7 m |
| Leg Span | Long 4.2 m, Width 3.2 m |
| Self-weight | 2.7 ton |
| Parameter Name | Parameter Value |
| Sweep | 2 meters, 5 sections, full arm 7.6 meters |
| Operating Radius | 6.6 meters |
| Winch | 2 ton |
| Turntable | 10-inch reinforced integrated turntable |
| Wire Rope | 8mm, 20 meters |
| Engine | Gasoline, Honda 390 |
| Motor | 4kW, Three-phase AC asynchronous motor, 380v |
| Outrigger | 4 folding legs (manual rotation, manual expansion, hydraulic take-off and landing) |
| Track | Length 1.1m, Width 15cm |
| OS (Operating System) | Manual plus remote control (remote control 6 way, walk + install leg operating lever) |
| Operating Valve | Install 6 proportional valves; leg 4 way switch valve |
| Climbing Ability | 20 degrees |
| Size | Length 2.4m, Width 0.75m, Height 1.5m |
| Leg Span | Length 3.2m, Width 3m |
| Self-weight | 1.6 ton |

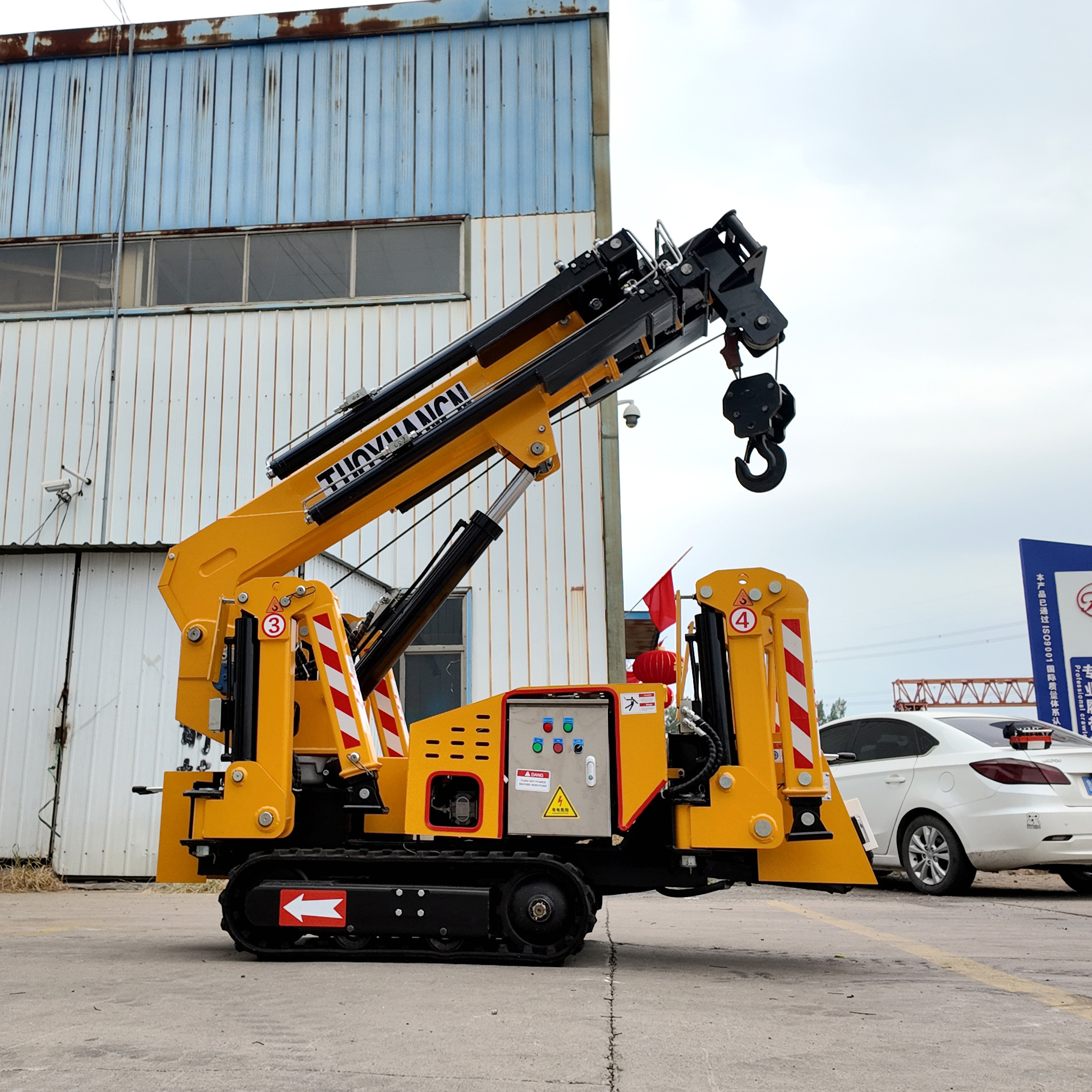

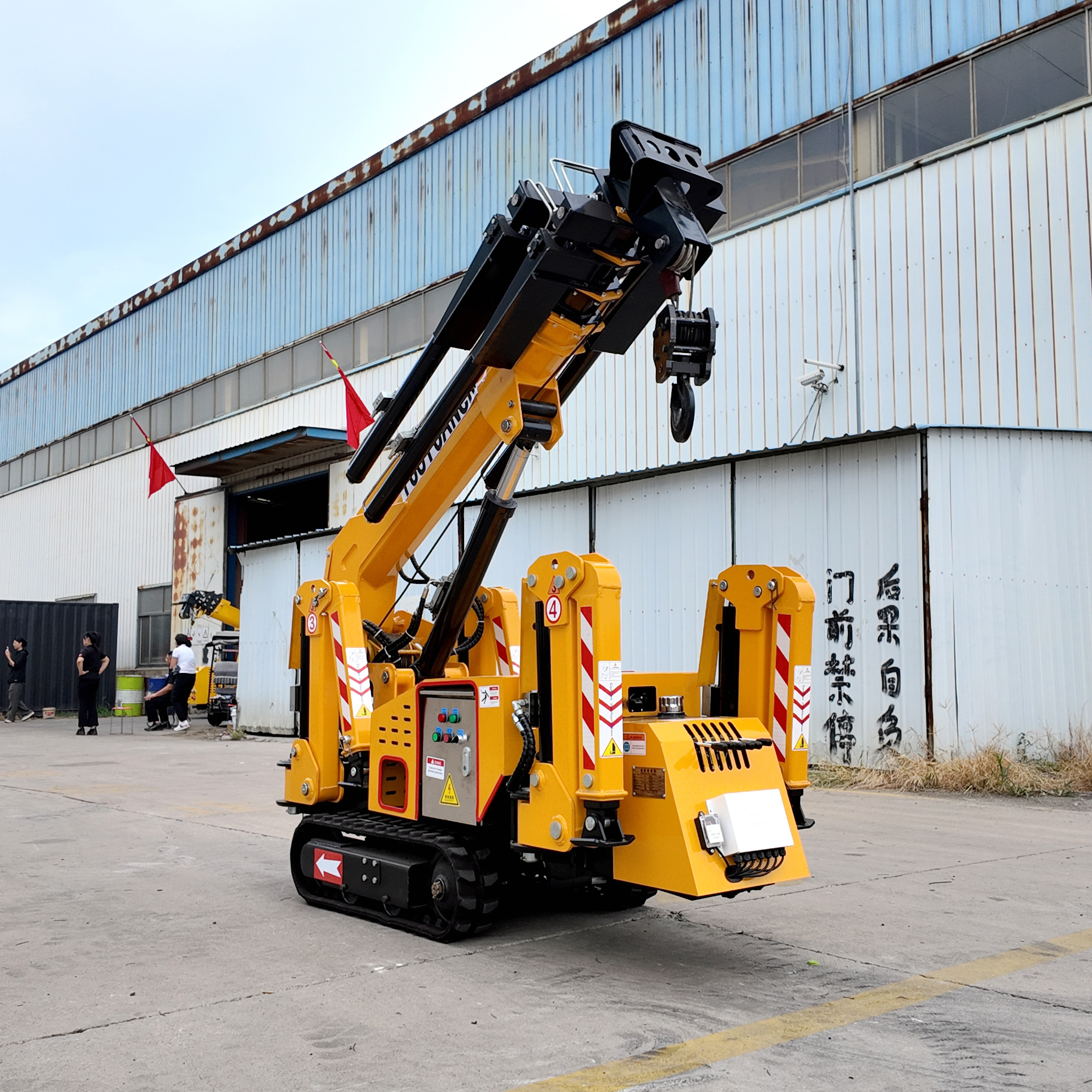

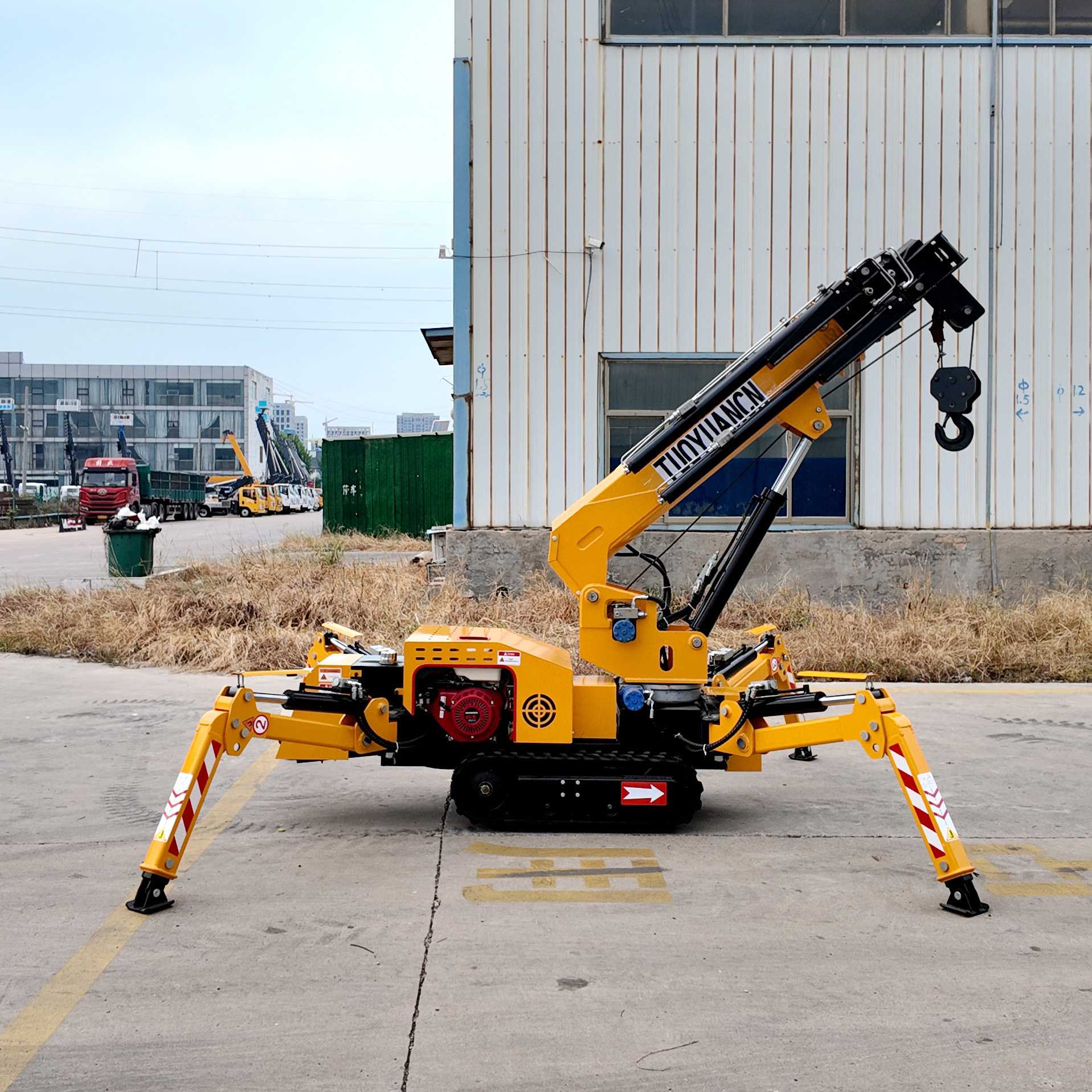

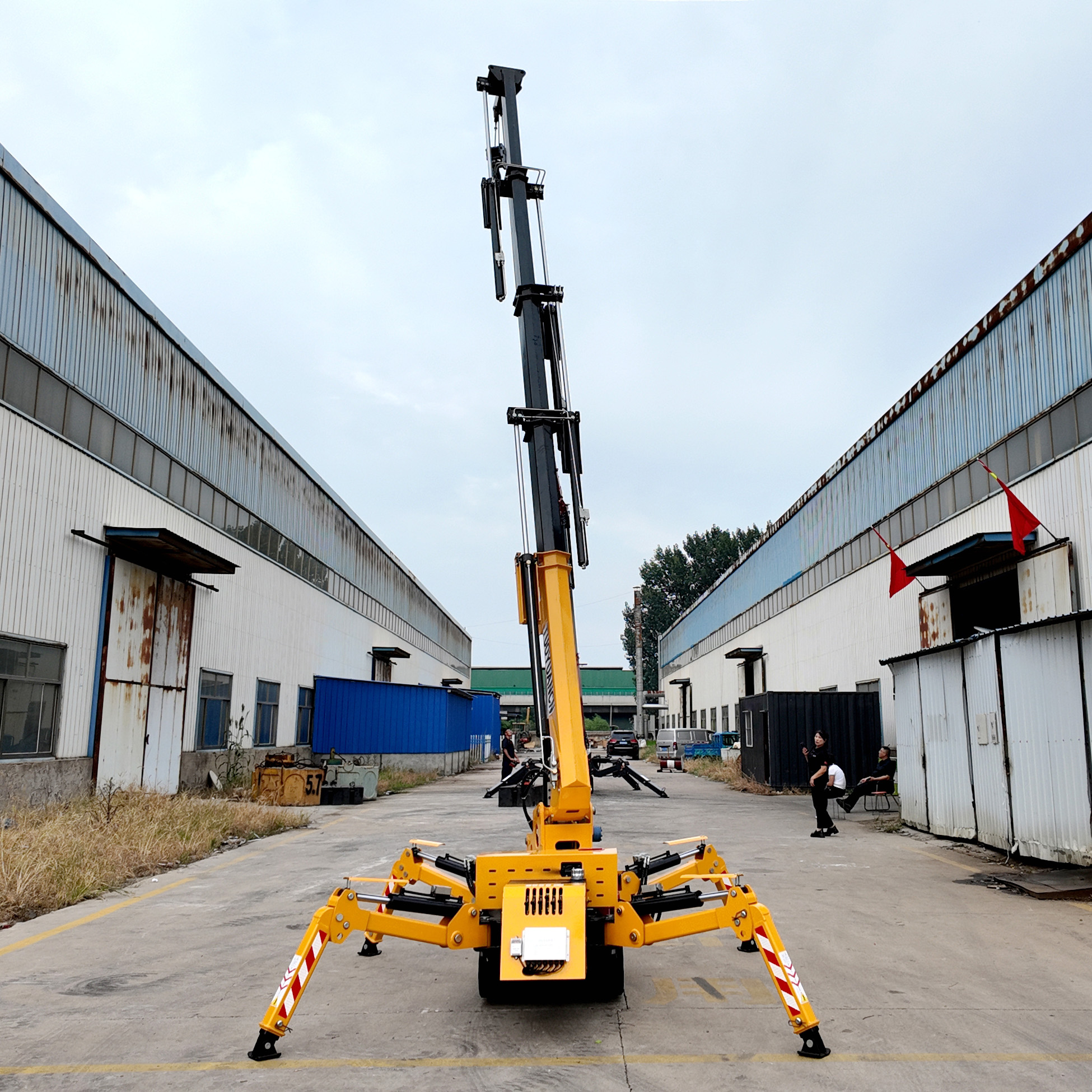

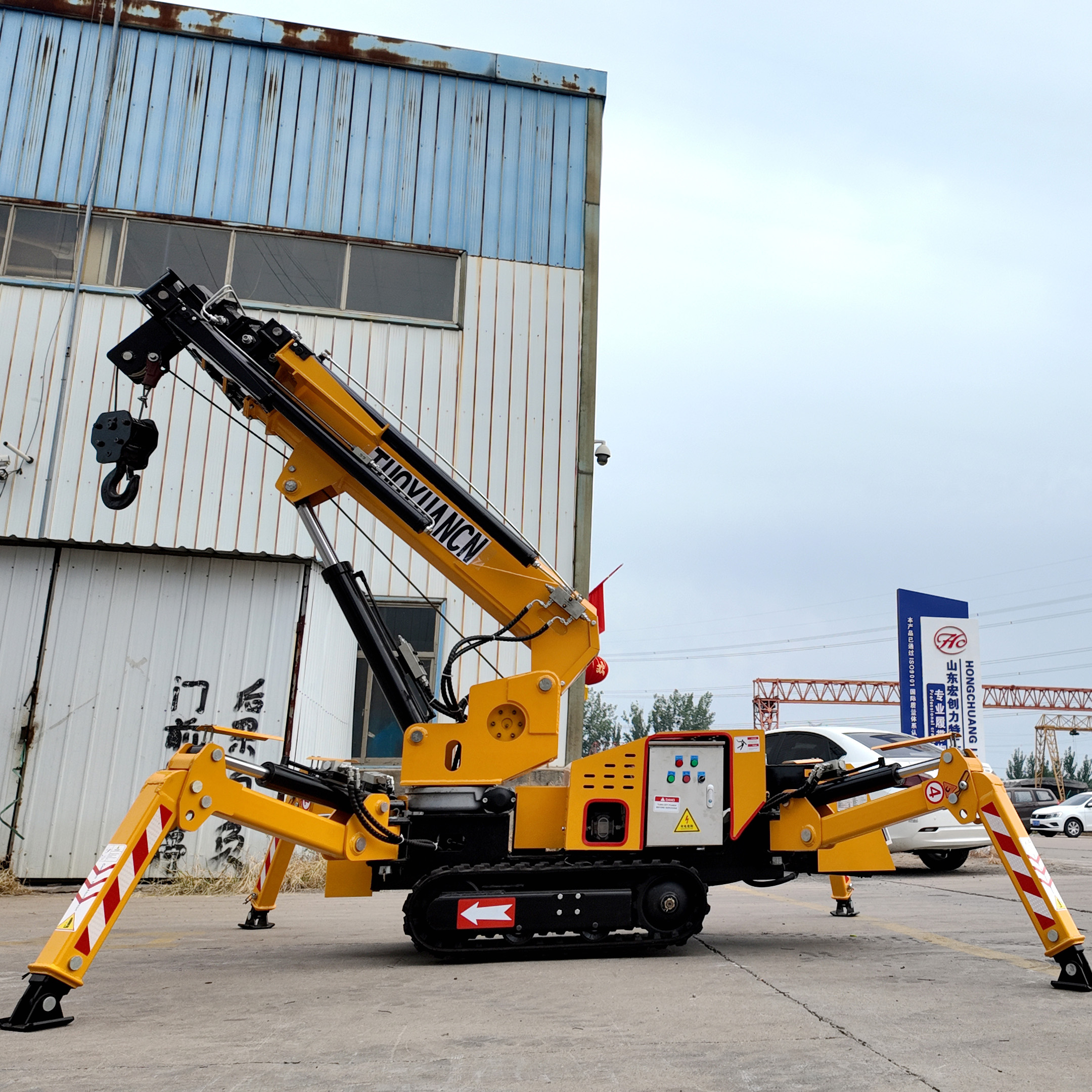

Crawler spider crane has a compact and flexible body, and can complete lifting operations in narrow spaces or complex terrains. It is widely used in indoor and outdoor environments such as construction sites, factory workshops, shopping malls, exhibition halls, airports, etc. Its foldable leg design allows the equipment to easily enter elevators, doorways, and narrow construction areas, making it suitable for various working conditions such as glass curtain wall installation, equipment maintenance, and garden tree pruning. The tracked chassis has excellent off-road and climbing capabilities, and can maintain stable operation on uneven ground, making it an ideal and efficient lifting equipment for urban construction and industrial projects.
Shandong tuoyuan machinery manufacturing co., ltd. Is located in jining, shandong, the core cluster area of the construction machinery industry. Since entering the industry in 2014, it has accumulated 11 years of professional experience in the production and manufacturing of construction machinery, especially in the field of characteristic products such as tracked transport vehicles, forming a mature technical system. The company has gradually developed into a comprehensive enterprise integrating new product research and development, intelligent manufacturing, and e-commerce operations. It always adheres to the development concept of “Quality as the foundation, innovation as the driving force”, relying on a professional and efficient management team, a strict quality inspection system throughout the process, customized production services that can adapt to work conditions, and efficient logistics support covering the world. It has established long-term and stable partnerships in europe, america, southeast asia, australia, peru and other places, and has steadily grown from a local manufacturer to a modern manufacturing enterprise with strong independent research and development capabilities and a global perspective.
Q1: How long is the warranty for this machine?
A: One year.
Q2: Are you the original manufacturer?
A: Yes. We are a construction machinery manufacturer.
Q3: Can we use our company logo on the machine?
A: Yes, sir, of course.
Q4: Do you have any international certifications?
A: Our main products are CE certified, and our production system is ISO9001 certified.
Q5: Are your quotes transparent?
A: We offer transparent quotes, clearly listing product unit prices, packaging fees, shipping costs, and other items. Before you place an order, we will provide a detailed “Fee Detail Sheet” for your review.
Q6: What is the minimum order quantity (MOQ)? Can you support small trial orders?
A: 1 unit, yes.
Q7: What is the production lead time?
A: The production lead time for standard products is generally 8-15 business days after receiving the deposit. After the order is confirmed, a production schedule will be issued and you will be updated on the production progress.
Q8: What are the payment methods?
A: Our standard payment method is a 30% deposit and a 70% balance.
Q9: What if the product has quality issues or is damaged upon arrival?
A: We offer a one-year warranty on core components. If any issues arise, our engineers will first provide remote online diagnosis and guidance, and then provide warranty service.
Q10: What if the product is damaged during sea transportation?
A: Upon request, we will purchase shipping insurance for the machine.
